0.6/1KV Copper Conductor XLPE Insulated Steel Tape Polyolefin Sheathed LSZH Power Cable

0.6-1KV WDZ-YJY23 1~4 core LZSH Copper Conductor XLPE Insulated Steel Tape Armoured Polyolefin Sheathed Power Cable Cross Section

1-4 Core CU/XLPE/Polyolefin/STA/Polyolefin LSZH Cross Sectional Structure Picture For 0.6/1KV

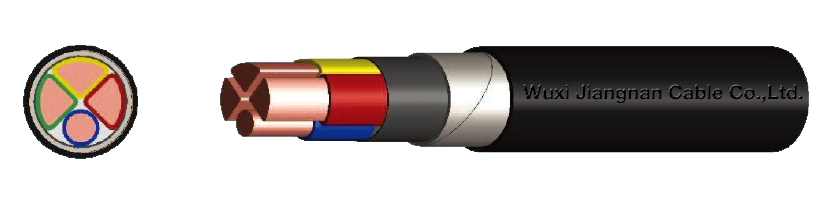

0.6-1KV WDZ-YJY23 3+1 core LSZH Copper Conductor XLPE Insulated Steel Tape Armoured Polyolefin Sheathed Power Cable

3+1 Core CU/XLPE/Polyolefin/STA/Polyolefin LSZH Power Cable For 0.6/1KV

0.6-1KV WDZ-YJY23 3+2 core LSZH Copper Conductor XLPE Insulated Steel Tape Armoured Polyolefin Sheathed Power Cable

3+2 Core CU/XLPE/Polyolefin/STA/Polyolefin LSZH Power Cable For 0.6/1KV

0.6-1KV WDZ-YJY23 4 core LSZH Copper Conductor XLPE Insulated Steel Tape Armoured Polyolefin Sheathed Power Cable

4 Core CU/XLPE/Polyolefin/STA/Polyolefin LSZH Power Cable For 0.6/1KV

0.6-1KV WDZ-YJY23 4+1 core LSZH Copper Conductor XLPE Insulated Steel Tape Armoured Polyolefin Sheathed Power Cable

4+1 CU/XLPE/Polyolefin/STA/Polyolefin LSZH Power Cable For 0.6/1KV

APPLICATION
(Low Smoke Zero Halogen)LSZH Copper Conductor XLPE Insulated Steel Tape Armoured Polyolefin Sheathed Power Cable.
Copper XLPE STA LSZH Cable is suitable for using in power distribution networks or fixed installations for industrial equipments with rated voltage up to and including 0.6/1KV.

CABLE STANDARDS
GB/T12706-2008,IEC,BS,ASTM and etc. upon request.

18





BASIC INFORMATION
Code Name
WDZ-YJY23
Rated Voltage (Uo/U)
0.6/1KV
Cable Structure
Copper Conductor/XLPE Insulation/Polyolefin Inner Sheath/Steel Tape Armoured/Polyolefin Outer Sheath

CONSTRUCTION
Conductor
Number of conductors:1,2,3,4,5,3+1,4+1
The conductors shall comply with the requirement given in IEC
Insulation
XLPE(Cross-linked Polyethylene) according to IEC
Armoured
Steel Tape
Sheath
Low Smoke Zero Halogen Polyolefin according to IEC

CHARACTERISTICS
Conductor temperature
Maximum conductor temperature in normal use: 90℃
Max.short-circuit temperature
Maximum shall not exceed 250℃(5s Max,Duration)
Installation temperature
Ambient temperature under installation shall not be below 0℃
Minimum bending radius
The bending radius of cable: (D-Diameter of cable)
————————————-≥15D

Nominal Cross Sectional Area Of Conductor(mm²)
-2x1.53x1.54x1.55x1.53x2.5+1x1.53x2.5+2x1.54x2.5+1x1.5
-2x2.53x2.54x2.55x2.53x4+1x2.53x4+2x2.54x4+1x2.5
-2×43×44×45×43x6+1x43x6+2x44x6+1x4
-2×63×64×65×63x10+1x63x10+2x64x10+1x6
1×102×103×104×105×103x16+1x103x16+2x104x16+1x10
1×162×163×164×165×163x25+1x163x25+2x164x25+1x16
1×252×253×254×255×253x35+1x163x35+2x164x35+1x16
1×352×353×354×355×353x50+1x253x50+2x254x50+1x25
1×50*2×50*3×50*4×50*5×50*3x70+1x353x70+2x354x70+1x35
1×70*2×70*3×70*4×70*5×70*3x95+1x503x95+2x504x95+1x50
1×95*2×95*3×95*4×95*5×95*3x120+1x703x120+2x704x120+1x70
1×120*2×120*3×120*4×120*5×120*3x150+1x703x150+2x704x150+1x70
1×150*2×150*3×150*4×150*5×150*3x185+1x953x185+2x954x185+1x95
1×185*2×185*3×185*4×185*5×185*3x240+1x1203x240+2x1204x240+1x120
1×240*2×240*3×240*4×240*5×240*3x300+1x1503x300+2x1504x300+1x150
1×300*-3×300*4×300*5×300*3x400+1x1853x400+2x1854x400+1x185
1×400*-3×400*4×400*5×400*---
1×500*-3×500*4×500*5×500*---
1×630*-------
