0.6/1KV YJLV-Aluminium Conductor XLPE Insulated PVC Sheathed Power Cable
APPLICATION
YJLV-Aluminium Conductor XLPE Insulated PVC Sheathed Power Cable.
Aluminium XLPE PVC LSZH Cable is suitable for using in power distribution networks or fixed installations for industrial equipments with rated voltage up to and including 0.6/1KV.
CABLE STANDARDS
GB/T12706-2008,IEC,BS,ASTM and etc. upon request.
BASIC INFORMATION
Code Name
YJLV
Rated Voltage (Uo/U)
0.6/1KV

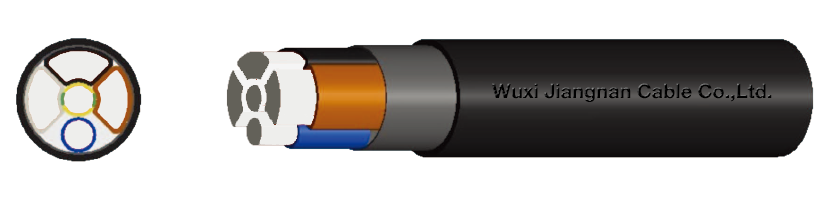

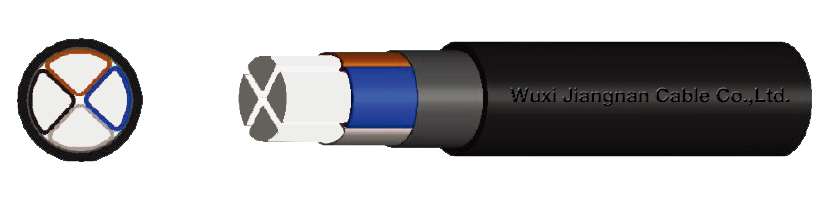

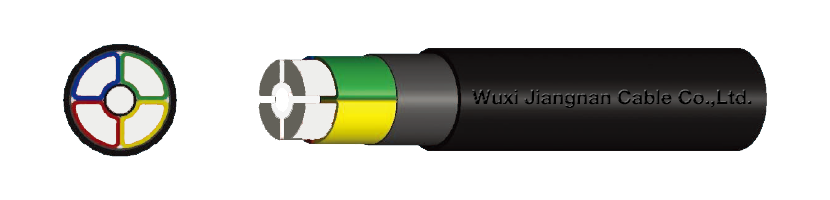

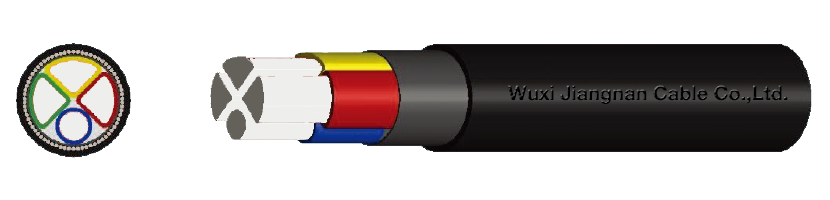

Cable Structure
Aluminium Conductor/XLPE Insulation/PVC Sheath
CONSTRUCTION
Conductor
Number of conductors:1,2,3,4,5,3+1,4+1
The conductors shall comply with the requirement given in IEC
Insulation
XLPE(Cross-linked Polyethylene) according to IEC
Sheath
PVC(Polyaluminium Chloride) according to IEC
CHARACTERISTICS
Conductor temperature
Maximum conductor temperature in normal use: 90℃
Max.short-circuit temperature
Maximum shall not exceed 250℃(5s Max,Duration)
Installation temperature
Ambient temperature under installation shall not be below 0℃
Minimum bending radius
The bending radius of cable: (D-Diameter of cable)
————————————-≥15D
PRODUCTION RANGE
NO. of Cores | Nominal Cross Sectional area m² |
---|---|
1* | 1.5-800 |
2 | 1.5-400 |
3 | 1.5-630 |
4 | 1.5-500 |
3+1 | 1.5-630 |
5 | 1.5-500 |
4+1 | 1.5-500 |
3+2 | 1.5-500 |
Nominal Cross Sectional Area(mm²) | NO.of Cores | Nominal Insulation Thickness(mm) | Approx Overall Diameter(mm) | Cable Weight Max(kg/km) |
---|---|---|---|---|
2.5 | 1 | 0.7 | 6 | 50 |
4 | 1 | 0.7 | 6.4 | 58 |
6 | 1 | 0.7 | 7 | 69 |
10 | 1 | 0.7 | 8.3 | 94 |
16 | 1 | 0.7 | 9.3 | 121 |
25 | 1 | 0.9 | 11.2 | 175 |
35 | 1 | 0.9 | 12.4 | 215 |
50* | 1 | 1 | 14.1 | 278 |
70* | 1 | 1.1 | 16.1 | 362 |
95* | 1 | 1.1 | 18.2 | 468 |
120* | 1 | 1.2 | 18.7 | 539 |
150* | 1 | 1.4 | 20.7 | 658 |
185* | 1 | 1.6 | 22.6 | 763 |
240* | 1 | 1.7 | 25.1 | 952 |
300* | 1 | 1.8 | 27.5 | 1172 |
400* | 1 | 2 | 30.9 | 1478 |
500* | 1 | 2.2 | 34.5 | 1861 |
630* | 1 | 2.4 | 38.5 | 2299 |
800* | 1 | 2.8 | 46 | 2937 |
2.5 | 2 | 0.7 | 10.5 | 95 |
4 | 2 | 0.7 | 11.5 | 115 |
6 | 2 | 0.7 | 12.5 | 139 |
10 | 2 | 0.7 | 14.8 | 195 |
16 | 2 | 0.7 | 16.8 | 257 |
25 | 2 | 0.9 | 20.4 | 369 |
35 | 2 | 0.9 | 22.6 | 460 |
50* | 2 | 1 | 24.6 | 478 |
70* | 2 | 1.1 | 28.6 | 646 |
95* | 2 | 1.1 | 32.2 | 849 |
120* | 2 | 1.2 | 35.6 | 1042 |
150* | 2 | 1.4 | 39.4 | 1520 |
185* | 2 | 1.6 | 43.8 | 1800 |
240* | 2 | 1.7 | 49.6 | 2329 |
300* | 2 | 1.8 | 54.8 | 3076 |
2.5 | 3 | 0.7 | 11 | 111 |
4 | 3 | 0.7 | 12 | 135 |
6 | 3 | 0.7 | 13.1 | 167 |
10 | 3 | 0.7 | 15.6 | 238 |
16 | 3 | 0.7 | 17.8 | 318 |
25 | 3 | 0.9 | 21.7 | 463 |
35 | 3 | 0.9 | 24.1 | 584 |
50* | 3 | 1 | 26.2 | 677 |
70* | 3 | 1.1 | 30.8 | 929 |
95* | 3 | 1.1 | 35 | 1212 |
120* | 3 | 1.2 | 38.7 | 1593 |
150* | 3 | 1.4 | 43 | 2010 |
185* | 3 | 1.6 | 47.7 | 2384 |
240* | 3 | 1.7 | 53.3 | 3045 |
300* | 3 | 1.8 | 59.1 | 3810 |
400* | 3 | 2 | 66.4 | 4885 |
2.5 | 4 | 0.7 | 11.8 | 131 |
4 | 4 | 0.7 | 13 | 162 |
6 | 4 | 0.7 | 14.2 | 201 |
10 | 4 | 0.7 | 12 | 290 |
16 | 4 | 0.7 | 19.4 | 392 |
25 | 4 | 0.9 | 23.8 | 577 |
35 | 4 | 0.9 | 26.5 | 731 |
50* | 4 | 1 | 29.1 | 884 |
70* | 4 | 1.1 | 34.1 | 1236 |
95* | 4 | 1.1 | 38.8 | 1595 |
120* | 4 | 1.2 | 43.1 | 2064 |
150* | 4 | 1.4 | 47.6 | 2579 |
185* | 4 | 1.6 | 53.1 | 3085 |
240* | 4 | 1.7 | 59.3 | 3939 |
300* | 4 | 1.8 | 65.8 | 4929 |
400* | 4 | 2 | 73.9 | 6351 |
2.5 | 5 | 0.7 | 12.7 | 152 |
4 | 5 | 0.7 | 14 | 190 |
6 | 5 | 0.7 | 15.4 | 237 |
10 | 5 | 0.7 | 18.5 | 346 |
16 | 5 | 0.7 | 21.2 | 470 |
25 | 5 | 0.9 | 26.1 | 697 |
35 | 5 | 0.9 | 29 | 887 |
50* | 5 | 1 | 32.7 | 1132 |
70* | 5 | 1.1 | 38.3 | 1536 |
95* | 5 | 1.1 | 43.1 | 2053 |
120* | 5 | 1.2 | 47.6 | 2541 |
150* | 5 | 1.4 | 52.8 | 3201 |
185* | 5 | 1.6 | 58.9 | 3692 |
240* | 5 | 1.7 | 65.8 | 4882 |
300* | 5 | 1.8 | 72.9 | 6108 |
400* | 5 | 2 | 82.12 | 7899 |
