Energy Efficient ACSR

Energy Efficient ACSR Description

APPLICATION
ACSR Cable For Energy Efficient has excellent qualities of low loss , low creep and easy laid. It is suitable for line installation with high request and expansion of old line.

CABLE STANDARDS
Enterprise Standards,IEC,BS,ASTM and etc. upon request.

18





CHARACTERISTICS
1.Permissible Max.continous operating temperature of conductor:250℃
2.Diameter of wire casing not less than 20 times diameter of conductor

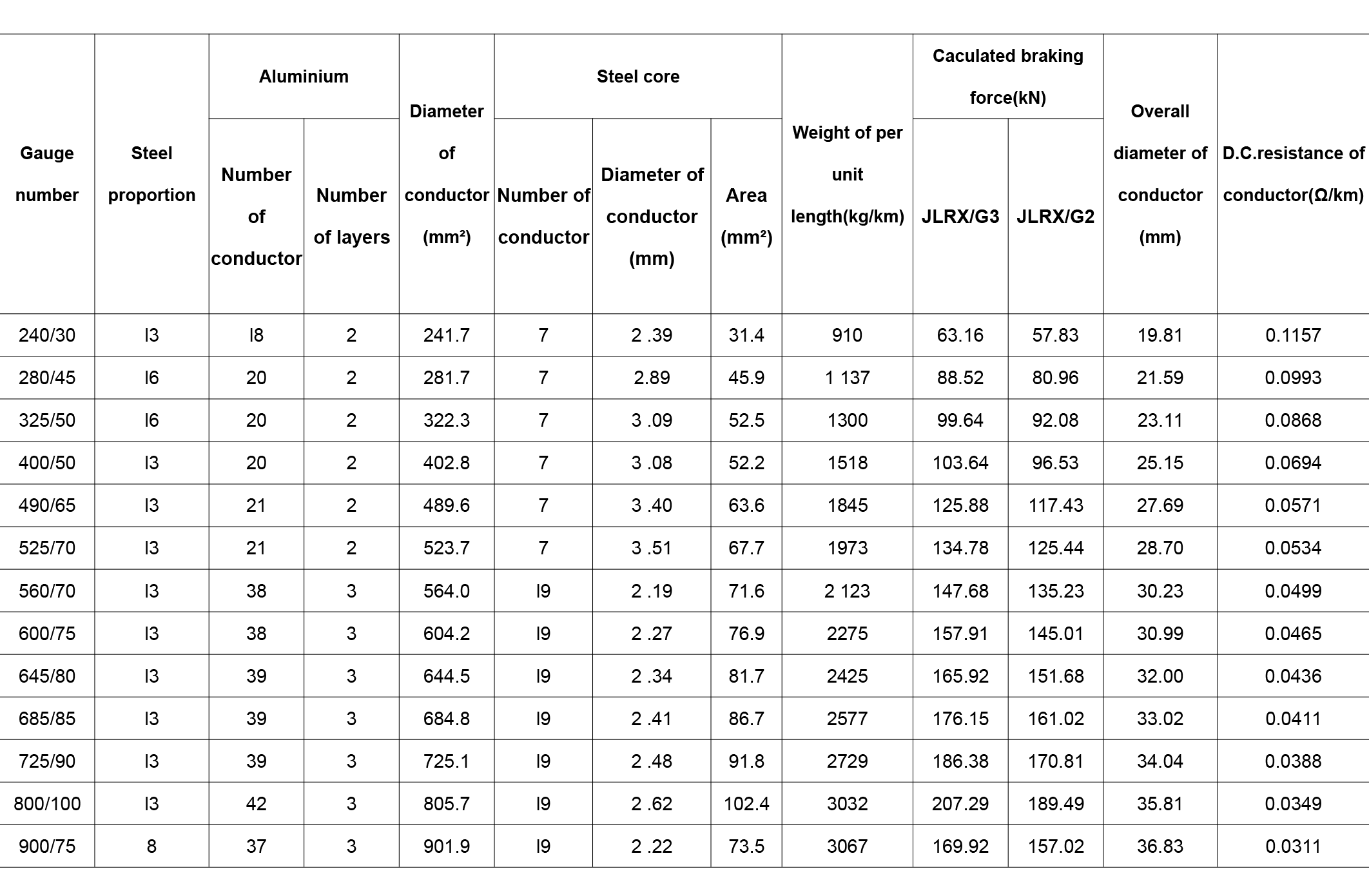

PRODUCTS’ RANGE
Aluminum /steel sectional area 900/75 and bellow energy efficient ACSR.

TYPE AND NAME OF CABLE

CodeName
JLRX/G2AHigh tensile flexible ACSR
JLRX/G3AExtra-high tensile flexible ACSR
