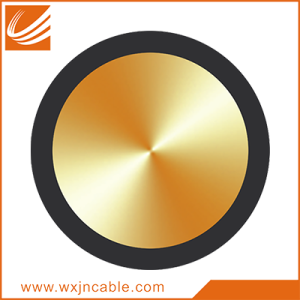

IEC 60227 06 (RV) 300/500V Single-core Non-sheathed Flexible Cable
IEC 60227 06 (RV) Single-core Non-sheathed Flexible Cable For Internal Wiring.
IEC 60227 06 of hook up wire is also used in power installation,household electrical appliance, instrument, Telecommunications equipment,switch control, relay and instrumentation panels of power switchgear and for purposes such as internal connectors in rectifier equipment, motor starters and controllers.
IEC 60227,BS,DIN,ICEA up on request.
60227 IEC 06
Rated Voltage (Uo/U)
Flexible CU/PVC Insulation
Number of conductors:1
The conductors shall comply with the requirement given in IEC 60228 for class 5
PVC(Polyvinyl Chloride) Type PVC/C according to IEC
Maximum conductor temperature in normal use: 70℃
Ambient temperature under installation shall not be below 0℃
Minimum bending radius
The bending radius of cable: (D-Diameter of cable)
|Nominal Cross Sectional Area(mm²)||CENELEC Code||NO. of Cores||Class of Conductor||Max.Overall Diameter (mm)|
