0.6/1KV YJLV32-Aluminium Conductor XLPE Insulated Steel Wire PVC Sheathed Power Cable

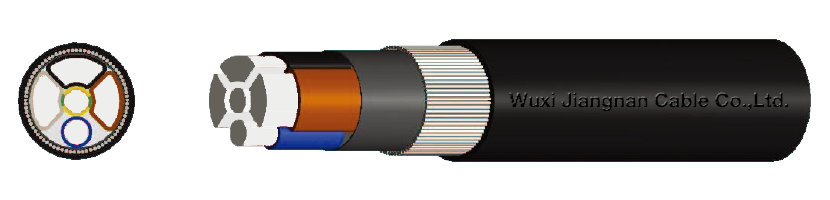

0.6-1KV YJLV32 1-4 Core Aluminium Conductor XLPE Insulated Steel Wire Armoured PVC Sheathed Power Cable Standard picture

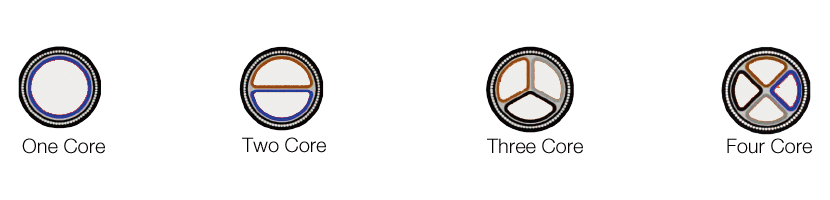

1-4 Core AL/XLPE/PVC/SWA/PVC Cross Sectional Structure Picture For 0.6/1KV

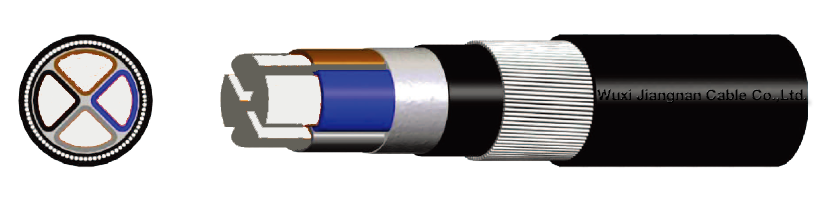

0.6-1KV YJLV32 3+1 Core Aluminium Conductor XLPE Insulated Steel Wire Armoured PVC Sheathed Power Cable Standard picture

3+1 Core AL/XLPE/PVC/SWA/PVC Power Cable For 0.6/1KV

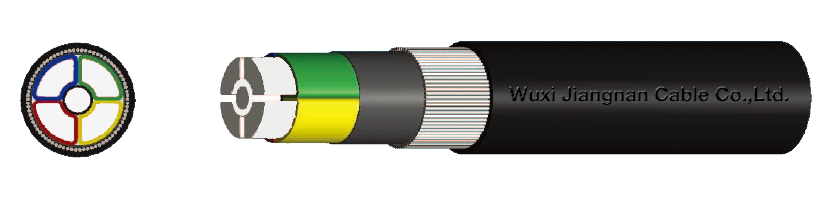

0.6-1KV YJLV32 3+2 Core Aluminium Conductor XLPE Insulated Steel Wire Armoured PVC Sheathed Power Cable Standard picture

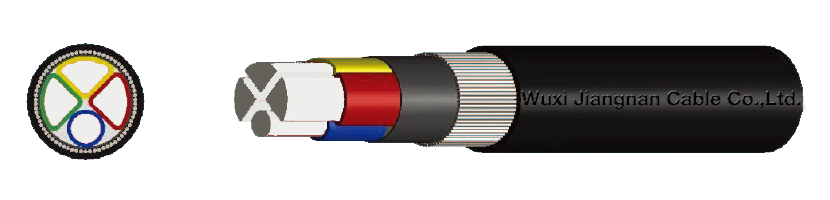

3+2 Core AL/XLPE/PVC/SWA/PVC Power Cable For 0.6/1KV

0.6-1KV YJLV32 4 Core Aluminium Conductor XLPE Insulated Steel Wire Armoured PVC Sheathed Power Cable Standard picture

4 Core AL/XLPE/PVC/SWA/PVC Power Cable For 0.6/1KV

0.6-1KV YJLV32 4+1 Core Aluminium Conductor XLPE Insulated Steel Wire Armoured PVC Sheathed Power Cable Standard picture

4+1 AL/XLPE/PVC/SWA/PVC Power Cable For 0.6/1KV

APPLICATION
YJLV32-Aluminium Conductor XLPE Insulated Steel Wire Armoured PVC Sheathed Power Cable.
Aluminium XLPE SWA PVC LSZH Cable is suitable for using in power distribution networks or fixed installations for industrial equipments with rated voltage up to and including 0.6/1KV.

CABLE STANDARDS
GB/T12706-2008,IEC,BS,ASTM and etc. upon request.

18





BASIC INFORMATION
Code Name
YJLV32
Rated Voltage (Uo/U)
0.6/1KV
Cable Structure
Aluminium Conductor/XLPE Insulation/Steel Wire Armoured /PVC Sheath

CONSTRUCTION
Conductor
Number of conductors:1,2,3,4,5,3+1,4+1
The conductors shall comply with the requirement given in IEC
Insulation
XLPE(Cross-linked Polyethylene) according to IEC
Sheath
PVC(Polyaluminium Chloride) according to IEC
Armoured
Steel Wire

CHARACTERISTICS
Conductor temperature
Maximum conductor temperature in normal use: 90℃
Max.short-circuit temperature
Maximum shall not exceed 250℃(5s Max,Duration)
Installation temperature
Ambient temperature under installation shall not be below 0℃
Minimum bending radius
The bending radius of cable: (D-Diameter of cable)
————————————-≥15D

PRODUCTION RANGE

NO. of CoresNominal Cross Sectional area m²
210-400
310-630
410-500
3+110-630
510-500
4+110-500
3+210-500
Nominal Cross Sectional Area(mm²)NO.of CoresNominal Insulation Thickness(mm)Approx Overall Diameter(mm)Cable Weight Max(kg/km)
1020.720783
1620.722920
2520.925.61156
3520.927.81328
50*21301231
70*21.135.21733
95*21.1392022
120*21.242.42328
150*21.447.23799
185*21.652.24305
240*21.757.85124
300*21.863.56408
1030.720.8856
1630.7231017
2530.926.91296
3530.929.51504
50*3131.81592
70*31.137.62215
95*31.141.82641
120*31.246.73327
150*31.451.44452
185*31.656.15103
240*31.762.16106
300*31.867.97177
400*3276.59692
1040.722.2960
1640.724.61153
2540.9291487
3540.931.91755
50*4135.52097
70*41.140.92692
95*41.146.83221
120*41.257.54492
150*41.4565333
185*41.661.96103
240*41.768.17368
300*41.875.98368
400*4284.411732
1050.723.71071
1650.726.41296
2550.931.51704
3550.935.42258
50*5139.52620
70*51.145.13244
95*51.151.34479
120*51.2565265
150*51.461.66241
185*51.667.77188
240*51.775.98703
300*51.883.611332
400*5292.613889
