0.6/1KV VLV32-Aluminium Conductor PVC Insulated Steel Wire Armoured PVC Sheathed Power Cable

0.6-1KV VLV32 1-4 Core Aluminium Conductor PVC Insulated Steel Wire Armoured PVC Sheathed Power Cable Standard picture

1-4 Core AL/PVC/PVC/SWA/PVC Cross Sectional Structure Picture For 0.6/1KV

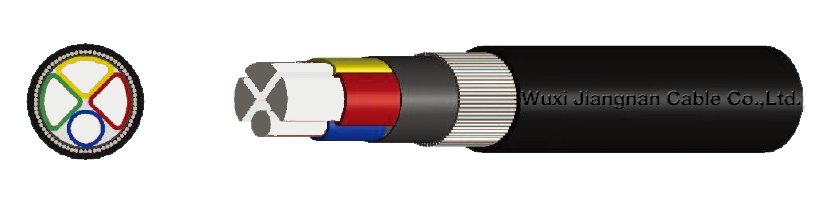

0.6-1KV VLV32 3+1 Core Aluminium Conductor PVC Insulated Steel Wire Armoured PVC Sheathed Power Cable Standard picture

3+1 Core AL/PVC/PVC/SWA/PVC Power Cable For 0.6/1KV

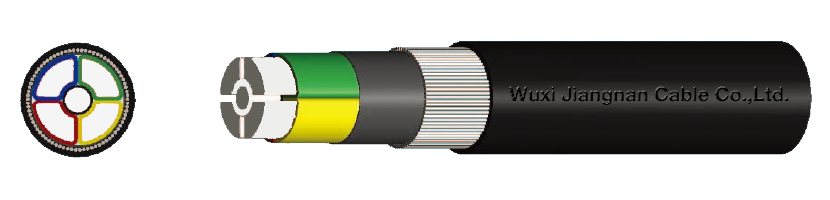

0.6-1KV VLV32 3+2 Core Aluminium Conductor PVC Insulated Steel Wire Armoured PVC Sheathed Power Cable Standard picture

3+2 Core AL/PVC/PVC/SWA/PVC Power Cable For 0.6/1KV

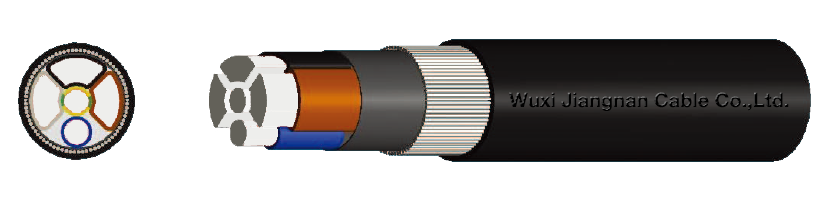

0.6-1KV VLV32 4 Core Aluminium Conductor PVC Insulated Steel Wire Armoured PVC Sheathed Power Cable Standard picture

4 Core AL/PVC/PVC/SWA/PVC Power Cable For 0.6/1KV

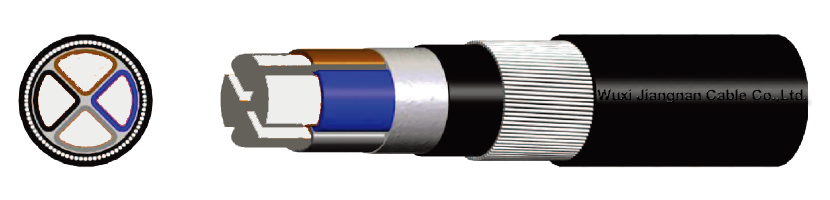

0.6-1KV VLV32 4+1 Core Aluminium Conductor PVC Insulated Steel Wire Armoured PVC Sheathed Power Cable Standard picture

4+1 AL/PVC/PVC/SWA/PVC Power Cable For 0.6/1KV

APPLICATION
VLV32-Aluminium Conductor PVC Insulated Steel Wire Armoured PVC Sheathed Power Cable.
Aluminium PVC Sheathed SWA PVC Cable is suitable for using in power distribution networks or fixed installations for industrial equipments with rated voltage up to and including 0.6/1KV.

CABLE STANDARDS
GB/T12706-2008,IEC,BS,ASTM and etc. upon request.

18





BASIC INFORMATION
Code Name
VLV32
Rated Voltage (Uo/U)
0.6/1KV
Cable Structure
Aluminium Conductor/PVC Insulation/PVC Inner Sheath/Steel Wire Armoured/PVC Outer Sheath

CONSTRUCTION
Conductor
Number of conductors:1,2,3,4,5,3+1,4+1
The conductors shall comply with the requirement given in IEC
Insulation
PVC(Polyvinyl Chloride) according to IEC
Sheath
PVC(Polyvinyl Chloride) according to IEC
Armoured
Steel Wire

CHARACTERISTICS
Conductor temperature
Maximum conductor temperature in normal use: 70℃
Max.short-circuit temperature
Maximum shall not exceed 160℃(5s Max,Duration)
Installation temperature
Ambient temperature under installation shall not be below 0℃
Minimum bending radius
The bending radius of cable: (D-Diameter of cable)
————————————-≥15D

PRODUCTION RANGE

No. of CoresNominal Cross Sectional Area m²
210-400
310-630
410-500
3+110-630
510-500
4+110-500
3+210-500
Nominal Cross Sectional Area(mm²)NO.of CoresNominal Insulation Thickness(mm)Approx Overall Diameter(mm)Cable Weight Max(kg/km)
102121.2892
162123.21040
2521.226.81294
3521.2291492
50*21.431.81417
70*21.436.81937
95*21.6412352
120*21.6442995
150*21.849.42697
185*22544068
240*22.260.25730
300*22.4666728
103122.1981
163124.31155
2531.228.11458
3531.230.71695
50*31.434.52065
70*31.4392514
95*31.644.13494
120*31.648.53962
150*31.8534619
185*3257.95339
240*32.264.36408
300*32.470.57519
400*32.679.510865
104123.61108
164126.11316
2541.230.61695
3541.233.52260
50*41.4382437
70*41.442.52989
95*41.649.74252
120*41.653.34841
150*41.858.15630
185*4263.96520
240*42.270.67813
300*42.479.210206
400*42.687.313167
105125.31241
1651281486
2551.233.31947
3551.237.32591
50*51.441.93025
70*51.4484194
95*51.654.25214
120*51.658.35965
150*51.8647062
185*52708092
240*52.279.410866
300*52.48712854
400*52.696.115586
